The H&S TOOL Panel Prep is a versatile and high-precision tool for tube preparation, designed for small bore heavy wall tubes from 0.3 to 4 inches o/d (8 to 108 mm). It performs essential tasks like external and internal bevelling, facing, counter-boring, and weld removal on materials including steel, stainless steel, duplex, and high alloys. Equipped with custom o/d clamp jaws for secure, vibration-resistant clamping and an ergonomic feed wheel handle, the H&S TOOL Panel Prep ensures smooth, controlled operation with minimal chatter. Ideal for both standard beveling and opposite tube applications, it delivers a reliable, efficient solution for demanding industrial tube prep work.

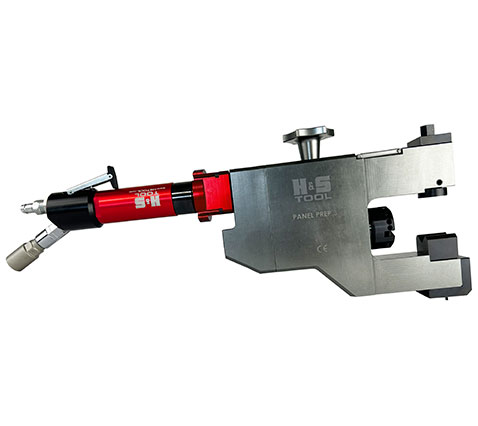

Panel Prep Machine
RANGE: 0.3 - 4" o/d / 8 - 108 mm OD
Mobile Nav

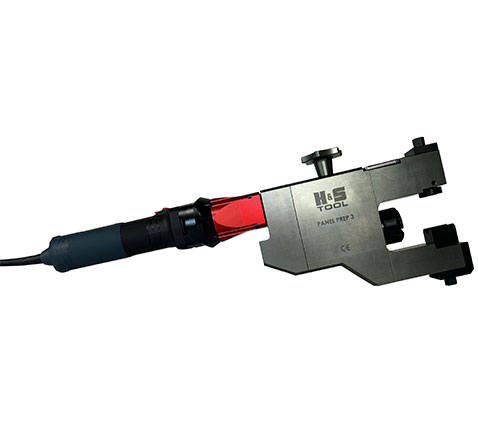

| H&S TOOL Panel Prep 2 | 8 – 53 mm / 0.3 – 2″ | HSPP2P | n/a | HSPP2E110 / HSPP2E220 |

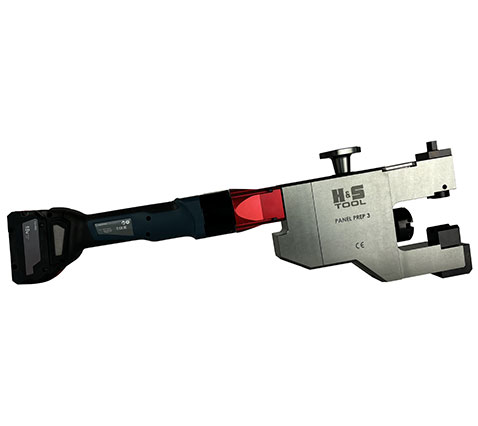

| H&S TOOL Panel Prep 3 | 12.7 – 73 mm / 0.5 – 3″ | HSPP3P | HSPP3B110 / HSPP3B220 | HSPP3E110 / HSPP3E220 |
| H&S TOOL Panel Prep 4 | 50 – 108 mm / 2 – 4″ | HSPP4P | n/a | HSPP4E110 / HSPP4E220 |

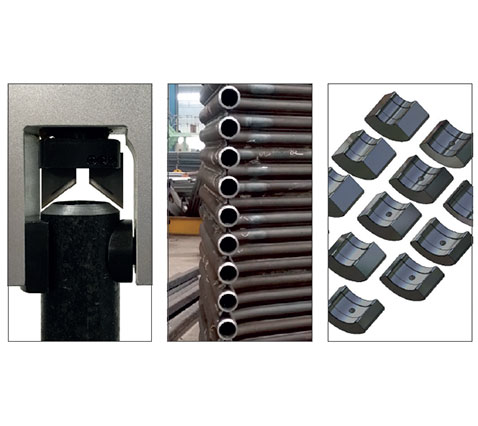

| Clamping Jaws | |||||||||||||||||
| Model | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 |
| H&S TOOL Panel Prep 2 O/D mm/inch | 8 / 0.31 | 10 / 0.39 | 12 / 0.47 | 14 / 0.55 | 16 / 0.63 | 18 / 0.71 | 20 / 0.79 | 22 / 0.87 | 25.4/ 1 | 28 / 1.1 | 32 / 1.26 | 38 / 1.50 | 42 / 1.65 | 45 / 1.77 | 48 / 1.89 | 51 / 2 | 53 / 2.1 |
| H&S TOOL Panel Prep 4 O/D mm/inch | 50 / 1.97 | 54 / 2.12 | 57 / 2.24 | 60 / 2.36 | 63 / 2.48 | 68 / 2.68 | 70 / 2.76 | 73 / 2.87 | 76 / 2.99 | 83 / 3.27 | 89 / 3.50 | 95 / 3.74 | 108 / 4.25 | n/a | n/a | n/a | n/a |
| One clamping jaw is only for one specific pipe size – specials can be made upon request | |||||||||||||||||
| Model | 1 | 2 |
| H&S TOOL Panel Prep 3 (O/D) | From 12.7 – 38 mm / 0.5 – 1.49″ | From 38 – 73 mm / 1.49 – 3″ |
The H&S TOOL Panel Prep Machine is a high-performance tool designed for precise and versatile tube preparation, ideal for professionals handling small bore heavy wall tubes. With the capability to manage tubes ranging from 0.3 to 4 inches o/d (8 to 108 mm), it excels in external and internal beveling, facing, counter-boring, and weld removal. Built for strength and stability, the Panel Prep’s custom clamp jaws provide firm, vibration-resistant clamping on the tube’s outside diameter, ensuring minimal chatter and smooth operation. Crafted to work comfortably with steel, stainless steel, duplex, and high alloyed materials, this machine combines ease of use, safety, and adaptability to meet the needs of demanding applications.
Features and Advantages
- Tube Range: Ideal for tubes from 0.3 to 4 inches o/d (8 to 108 mm).
Versatile Operations: Enables external and internal beveling, facing, counter-boring, and weld removal. - Material Compatibility: Suitable for steel, stainless steel, duplex, and high alloyed materials.
- Secure Clamping: Custom o/d clamp jaws reduce vibration and prevent chatter for precise results.
- Ergonomic Feed Wheel Handle: Offers comfortable, controlled feeding during beveling and facing tasks.
- Adaptability: Suitable for standard beveling applications as well as work on opposite tubes, making it a versatile tool for a variety of industrial needs.
The H&S TOOL Panel Prep delivers efficiency, durability, and ease of use, making it an essential tool for high-precision tube preparation in industrial settings.
