PREP 8 Pipe Beveling Machine

RANGE: 1.93" - 8.46" ID / 48 - 215 mm ID

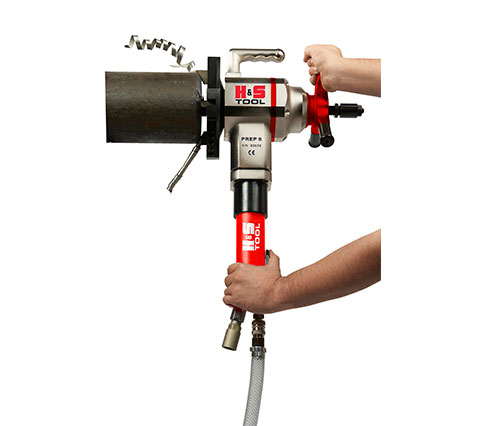

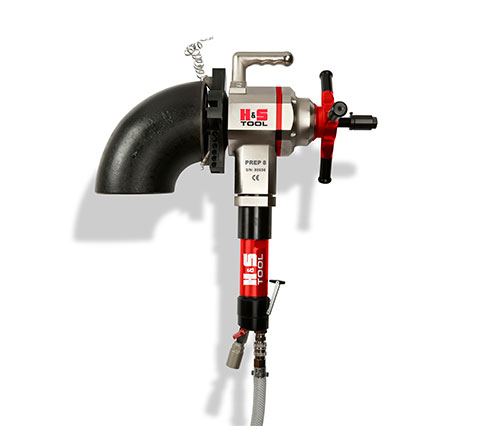

The H&S TOOL PREP 8 Pipe Beveler is a powerful, versatile end prep machine known for its 1.93 – 8.46 inch (48 – 215 mm ID) working range and ability to handle demanding tasks like external and internal beveling, elbow and fittings beveling, facing, counter-boring, weld removal, J-prepping, and compound beveling. It is constructed to work with all types of steel and exotic alloys; it offers pneumatic, electric, and battery power options, making it portable and ideal for one man to operate. With offset 4-jaw tool holders and the ability to use up to four insert or form tools simultaneously, the PREP 8 excels in high-volume, heavy-duty applications, making it a top choice for professionals both on-site and in workshops, especially for pipe prep and tube prep.

For rental inquiries, also check out the PB8 POWER BEVELER.

Mobile Nav

Description Pneumatic Electric Battery
Part Number HSP8P / HSP8PALD HSP8E110 / HSP8E220 HSP8B110 / HSP8B220
Locking tube range (ID) 50 – 215 mm 50 – 215 mm 50 – 215 mm
Locking tube range (ID) 1.96 – 8.46″ 1.96 – 8.46″ 1.96 – 8.46″
Idle speed 5 – 52 rpm 5 – 34 rpm 7 / 13 / 18 rpm
Torque 265 Nm 280 Nm 425 Nm
Length of axial feed 40 mm / 1.57″ 40 mm / 1.57″ 40 mm / 1.57″
Max operating temperature 55°C 55°C 55°C
Max acoustic radiation 75 dB 75 dB 75 dB
Pneumatic motor power 1.85 hp n/a n/a
Air consumption 50 cfm / 1400 L/min n/a n/a
Air working pressure 90 psi / 6.5 bar n/a n/a
Air hose connection 3/4″ n/a n/a
Electric motor power n/a 1900 watt 18V (1500) watt
Voltage n/a 110 or 220 volt charger 110 or 220 volt
Frequency n/a 50 / 60 Hz charger 50 / 60 Hz
Unit weight 25 kg / 55 lbs 26 kg / 57 lbs 26 kg / 57 lbs
Packing dimensions 830 x 780 x 250 mm / 32.7 x 30.7 x 9.8″ 830 x 610 x 250 mm / 32.7 x 24 x 9.8″ 830 x 610 x 250 mm / 32.7 x 24 x 9.8″
Packing weight 55 kg / 121 lbs 54 kg / 119 lbs 54 kg / 119 lbs

The H&S TOOL PREP 8 Pipe Beveler is a real workhorse. Its size, power, and functionality make it extremely popular in high volume heavy-duty beveling applications, on-site, or in the workshop.

POWERFUL PERFORMANCE

1.85 Hp Pneumatic Motor: Delivers high speed and torque to quickly cut through heavy wall pipes made of carbon, chrome-moly, or stainless steel.

Torque-Free Operation: Locks the machine securely into the pipe, allowing for effortless operation without requiring additional torque restraint.

ID Locking, In-Line Feed Design: Ensures precise alignment and consistent results, even under challenging conditions.

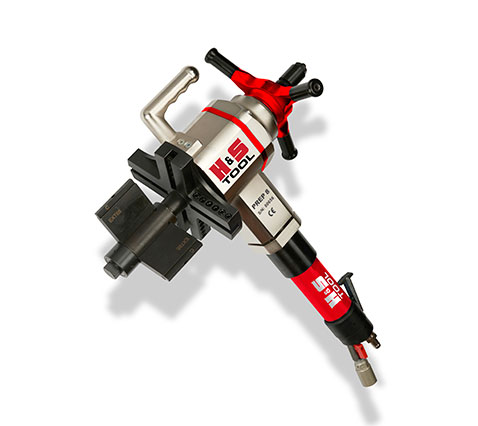

Offset 4-Jaw Tool Holder: Accommodates up to 4 insert or form tools for precise and simultaneous external, internal beveling of even the heaviest wall pipe.
Unmatched Power-to-Weight Ratio: Delivers high power while remaining lightweight, ideal for demanding weld prep, beveling, and elbow beveler applications.

VERSATILITY

Multiple Tooling Options: Supports beveling, counterboring, and J-prepping with high-speed steel or indexable carbide tooling.

Material Compatibility: Handles a variety of materials, including steel, stainless steel, and exotic alloys, making it suitable for pipe prep, tube prep, elbow beveling, facing, and compound bevels.

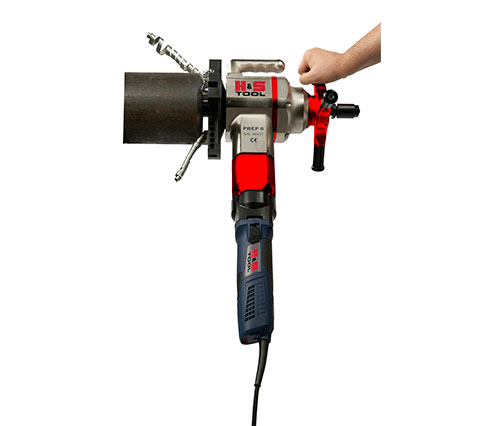

Power Options: Available in pneumatic, electric (110V or 220V), and battery-powered models, offering flexibility for various weld prep job sites.

RELIABILITY

Self-Centering 3-Leg ID Locking System: Automatically centers the tool in the pipe, ensuring accurate and reliable machining.

Lightweight Design: Aluminum alloy components make the machine lightweight and easy to handle, simplifying beveling, weld prep, and tube-facing for a single operator.

Quick Tool Bit Changes: Standard set screws simplify tool bit changes, eliminating the need to reach around the tool to release the blade.

Corrosion-Resistant Finish: Protects external components from weathering, extending the machine’s lifespan in tough environments.

Proven Workhorse: Designed for high-volume, heavy-duty operations, delivering consistent performance in weld prep, tube prep, and elbow beveling.
