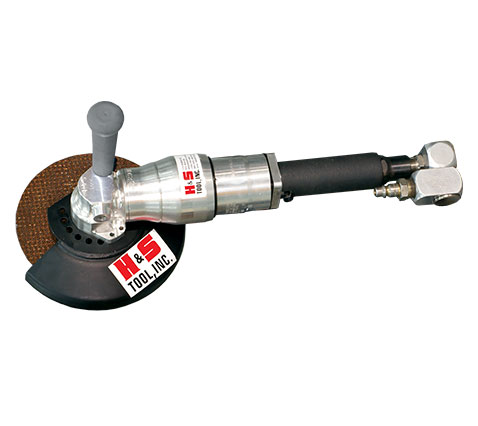

The CHS Compact Saw is a compact, lightweight hand saw that produces high horsepower and over 5,000 RPM to cut through heavy wall pipes and tubes with ease. Proven in years of job-site use, these rugged saws have all of the features needed in a production tool.
CHS Compact Saw
DEPTH OF CUT: 2", 3", & 3.5" / 50.8, 76.2, & 88.9 mm
Mobile Nav
| Description | Specification |
| Depth of Cut | 2″, 3″, & 3.5″ / 50.8, 76.2, & 88.9 mm |
| Type of Saw | Hand saw |
| Power Option | Pneumatic |
High Power-To-Weight Ratio
The CHS Compact Saw is a compact and lightweight hand saw that produces high horsepower and over 5,000 RPM to cut through heavy wall pipes and tubes with ease.
These rugged saws have all of the features you demand in a production tool:
Built-in spindle lock allows for quick and easy cutting blade replacement.
Adjustable guard allows rotation of the guard to avoid obstructions and provide an optimum angle of attack. Use as a right-hand or left-hand version by rotating the guard 180 degrees.
Dual position handle can be positioned parallel to the blade or at a right angle as workspace dictates.
Blade Selection – accepts 7, 9, and 10 inches (177.8, 228.6, and 254.0 mm) diameter blades, 0.063 inches (1.6 mm) thick, and guards.
