Engineered for precision and performance, the H&S TOOL Tube Rolling & Expanding Equipment is compact, powerful, and reliable. Choose from high-speed 1,000 rpm models for condenser tubes or heavy-duty options delivering up to 600 ft-lbs (821.1 N·m) of torque for high-pressure applications. Featuring variable torque control and a sensing cam, each model ensures accurate and consistent automatic tube expansion. Perfect for a range of tube rolling applications, H&S TOOL delivers unmatched quality and efficiency.
Tube Rolling & Expanding Equipment
RANGE: 0.25" ID – 4.5" OD / 6.4 – 114.3 mm
Mobile Nav
| Description | Specification |
| Working Range | 0.25″ ID – 4.5″ OD / 6.4 – 114.3 mm |
| Torque Level | Up to 600 ft lbs / 821.1 N·m |
| Power Option | Pneumatic |
H&S TOOL provides compact, powerful, and dependable rolling equipment, making us your go-to source for renting tube milling, cutting, and rolling solutions.

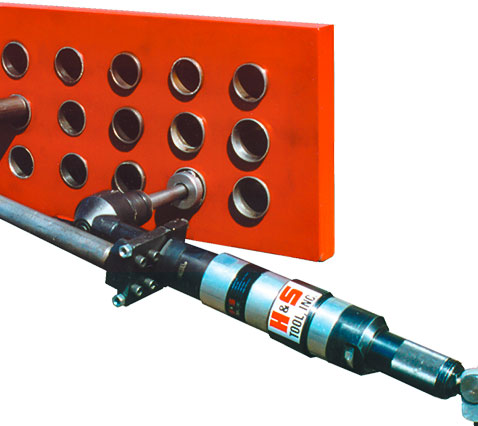

Our pneumatic-powered rolling motors range from 1,000 RPM models ideal for condenser tubes to robust units delivering up to 600 ft-lbs (821.1 Nm) of torque for high-pressure boiler tubes. Every model is designed with variable torque and a sensing cam to ensure precise automatic expanding.
Each rolling motor is shipped complete with a handle, adapter, and air hose featuring a dual swivel connection and filter, ensuring convenience and efficiency right out of the box.
A Complete Range of Expanders, Mandrels, and Accessories
H&S TOOL offers expanders for rent to meet all your rolling needs, covering applications from small 0.250-inch (6.35 mm) OD condenser tubes to large 4.5-inch (114.3 mm) OD high-pressure boiler tubes.
Constructed from high-alloy steel and specially heat-treated, our expanders and mandrels deliver exceptional durability and a long service life.
Condenser Expanders and Mandrels: Suitable for tube sheets ranging from 0.250 inches (6.35 mm) OD, 18GA (0.48 mm) for small-scale projects, to 1.500 inches (38.1 mm) OD, 19GA (0.50 mm) for larger heat exchanger applications up to 12.750 inches (323.9 mm).
Boiler Tube Expanders: Featuring a compact cage design with captured rolls, these expanders enable rolling and flaring in one step. Paired mandrels ensure smooth operation in drums, headers, or hand-hole rolling tasks.
Straight Expanders: Adjustable collar expanders are ideal for touch-up rolling and can pair with flare expanders for deep roll flaring. Expanders for fire tube boilers requiring final beading are also available.
Accessories to Enhance Performance
Our comprehensive selection of accessories includes right-angle and parallel gear drives, extensions, adapters, universals, and chipping hammers equipped with beading or collapsing tools, ensuring versatility for all your tube rolling projects.
H&S TOOL delivers the performance, precision, and reliability you need for any rolling application.
